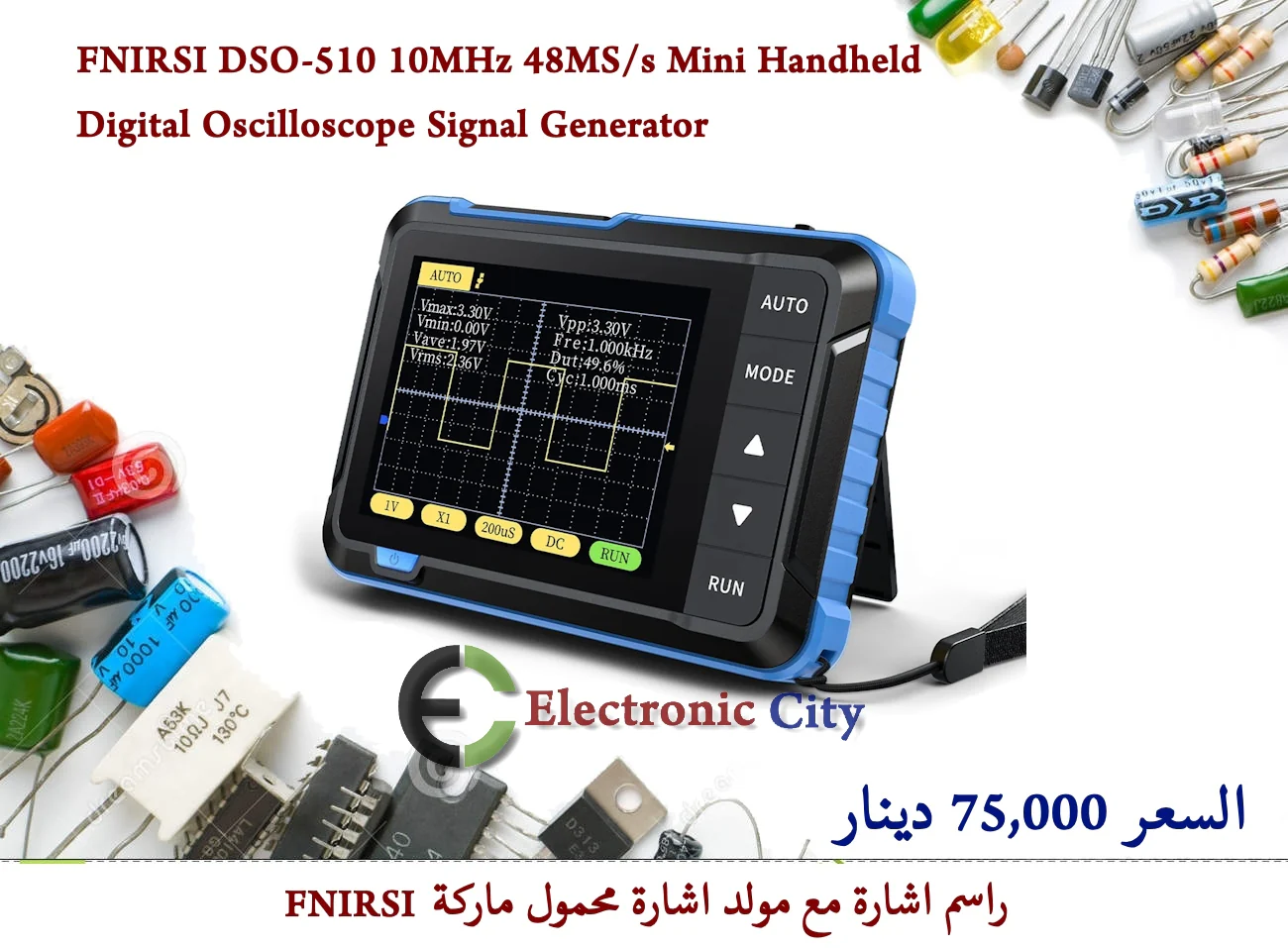

FNIRSI DSO-510 10MHz 48MS Mini Handheld Digital Oscilloscope Signal Generator

Channel：1

Sampling rate：48MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal Source*

Frequency：0-50KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.0V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：104g
