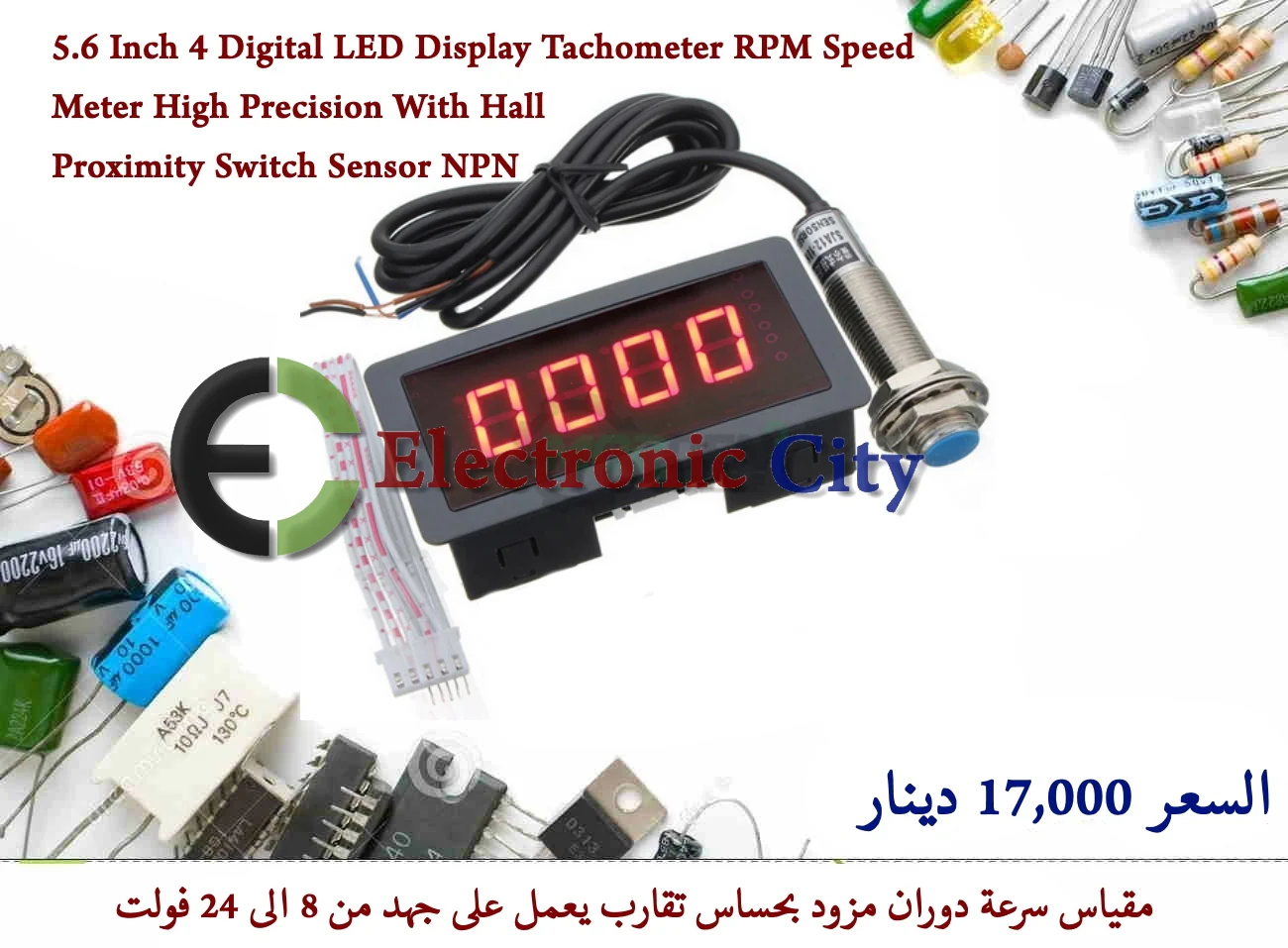

5.6 Inch 4 Digital LED Display Tachometer RPM Speed Meter High Precision With Hall Proximity Switch Sensor NPN #I5. XQ0056-03

5.6 Inch 4 Digital LED Display Tachometer RPM Speed Meter High Precision With Hall Proximity Switch Sensor NPN

جهاز قياس سرعة الدوران ( تاكوميتر ) مزود بمتحسس تقارب
يعمل على جهد من 8 الى 24 فولت

يتوفر بسعر 17,000 دينار


Main Specifications:

1. Measurement accuracy:±0.1%, reading±1 word.

2. Display mode: 0.56 red, green, blue LED
3. Four-digit reading 10-9999 revolutions

4. Display refresh rate: >3 times/sec
5. Working power supply: DC8-24V, 30mA, and 5v power supply version.
6. Overall dimensions: 79×42×25mm
7. Installation size: 76×39mm
8. Weight: Tachometer 47 grams Sensor 45 grams Package 92 grams
9. The Hall sensor is NPN normally open, the detection distance of the Hall sensor is within 10MM, the installation diameter of the Hall sensor is 12MM, and the wiring length is 1.2M
