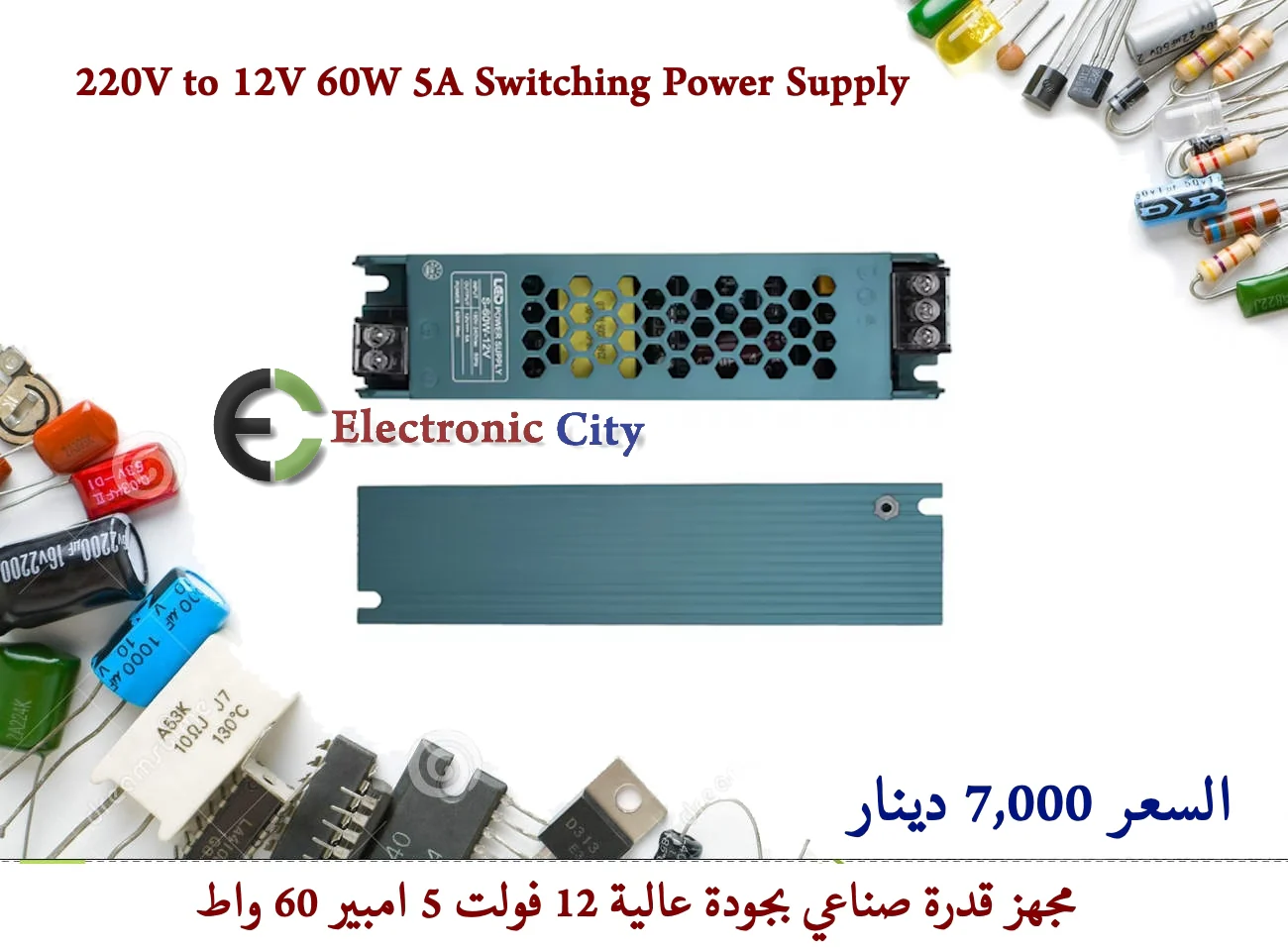

220V to 12V 60W 5A Switching Power Supply 012683

220V to 12V 60W 5A Switching Power Supply

مجهز قدرة صناعي بجودة عالية
12 فولت 5 امير 60 واط

Features：
1. Using high-quality materials, durable and long-lasting
2. Shell hollow design, made of thickened materials, sturdy and safe, with good compressive strength
3. Use terminals that are resistant to aging, impact, and high temperature; Protective covers at both ends can reduce dust and effectively protect electrical safety
4. High quality aluminum shell, combined with honeycomb holes for faster heat dissipation, ensures long-lasting power operation
5. Choose a high-frequency transformer with a wide wire diameter and sufficient power
6. Widely applicable, suitable for various LED advertising light boxes, light boards, etc
Parameter:
Product Name: LED Driver Power Supply
Input voltage: AC190V-240V
Output voltage: DC12V
Power: 100W
Working temperature: 0-60 ℃
Storage temperature: -20~60 ℃
Kind reminder:
AC: AC power
DC: Direct current
L: Connect to the mains power line
N: Connected to the mains zero line
V+: Output positive pole
V -: Output negative pole
ADJ: Output voltage fine-tuning
FG: Connected to the casing
Attention:
Input end: can be used without distinguishing between zero and live wires
Ground wire: To ensure safety and reduce interference, please ensure that the grounding port can be grounded
Output terminal: Do not install the positive and negative poles upside down
When the output terminals+V and - V are connected to LED lights, if the LED lights do not light up, please replace them with+V and - V
